ABRASIVES

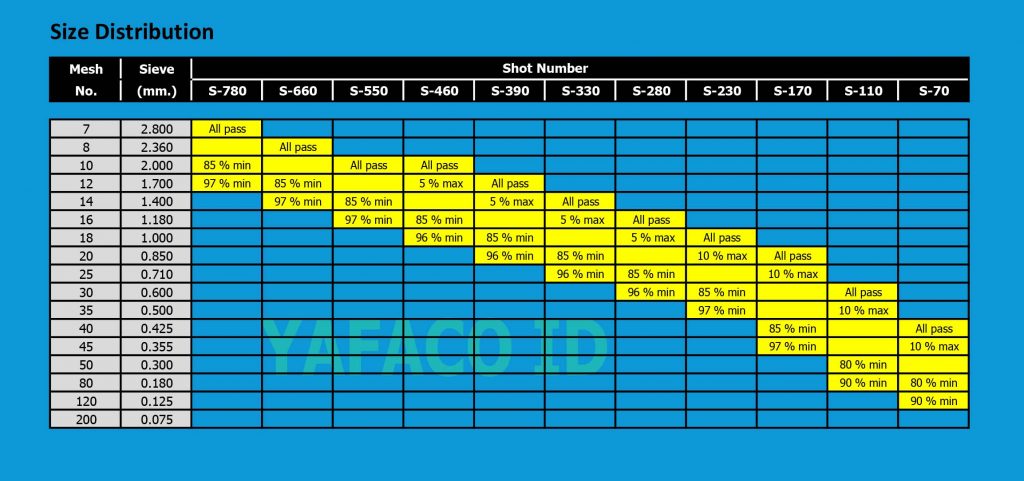

SIZE DISTRIBUTION STEEL SHOT

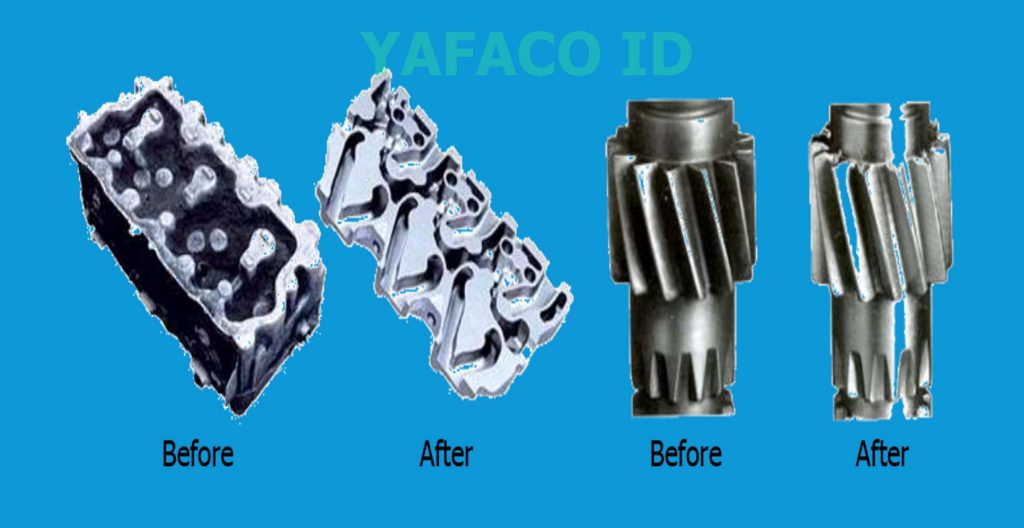

Steel Shot Application
- Removal Of Sand and other surface contamination from steel and iron casting, cast pipes, malleable fittings copper and almunium alloy castings and other general foundry products.
- Descalling of forged steel products and heat-treated products.
- Shot peening for otomotives part, aircraft components, railway casting, all sorts of gears, super hand steel chips, various tools.
Steel Abrasives For Shot Blasting Process
Chemical Composition
- C = 0.80 – 1.20%
- Si = > 0.40%
- Mn =0.35 – 1.20%
- P = < 0.050%
- S = < 0.050%
Properties
- Density
- Microstructure
- Hardness
Shot
- > 7.00 g/cc
- Uniform Martensite
- 40 – 51
- HRC
